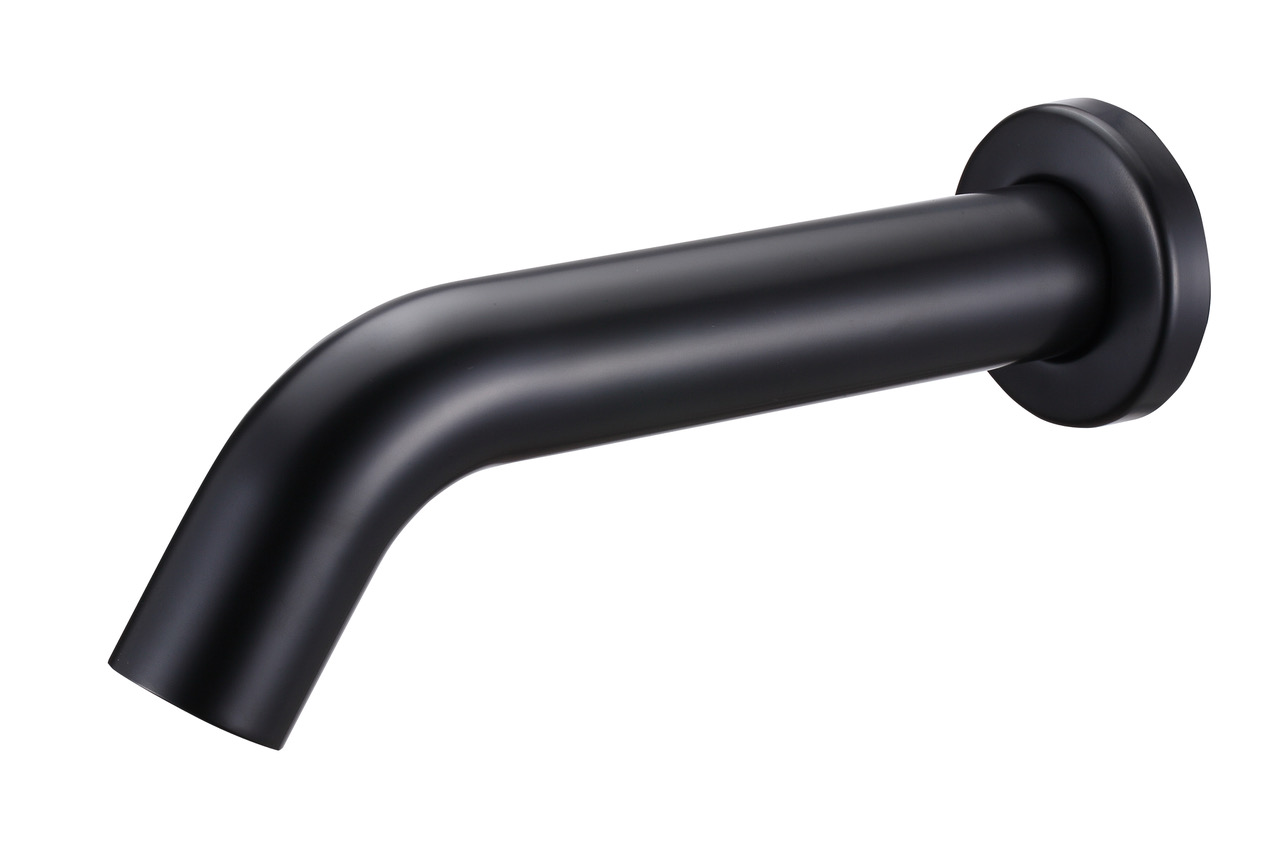

2730 Series Sensor Faucet

Product Details | Sleek. Modern. Functional.

The 2730 Series faucet is a single-hole wall mounted, piston operated sensor faucet that provides a vandal resistant, lead free, no touch solution that promotes better hygiene and energy savings. The sensor included in this faucet is self adapting, meaning manual adjustments are not necessary.

  • ADA Compliant. Meets all barrier free codes
  • Conserves water and energy
  • Easily installed in new or retrofit applications
  • Competitively priced for today’s commercial market
  • Promotes cleanliness & hygiene
  • Proven Hydrotek craftsmanship and reliability
  • Lead Free

Downloadables

Literature

Revit Families

Autodesk CAD

MODEL SPEC

Features

  • Proprietary Enduratek energy saving design allows up to 1.5 million on/off cycles
  • Vandal resistant faucet body with chrome plated, solid metal construction
  • Available in AC powered and battery powered versions.
  • Unique, energy-saving design of electronics and solenoid valve contributes to longer battery life without water hammer.
  • “Self-adapting” sensor distance adjustment eliminates the need for manual sensor adjustments.
  • Auto time-out feature to prevent sink overflow. Preset at 30 seconds.
  • Includes in-line filter adapter for easier cleaning.
  • Low battery indicator light (battery powered models).
  • Superior VSI silicone elastomer piston seals are unaffected by chlorine, chloramines, or ammonia.
  • Standard 1.0 GPM flow control for water conservation and annual savings.
  • Single-hole deck mount with optional 4” and 8” cover plate for vandal resistant three point anchoring.
  • Wall mountable, waterproof control box with armored, vandal resistant cables.
  • Shut-off delay is preset to 0.5 seconds.

Engineering Specifications

H-2730 and HE-2730 Battery Operated with Enduratek, Non-Mixing, Automatic Faucet:

Faucet Construction: . . . . . . . . . . . . . . . . . Solid brass, chrome plated

Control Circuit:
Auto Time-out: . . . . . . . . . . . . . . . . . . . 30 seconds
Sensor Range: . . . . . . . . . . . . . . . . . . . . Self adapting
Shut-off Delay: . . . . . . . . . . . . . . . . . . . 0.5 seconds
Line Purge (request only): . . . . . . . . . . 5, 15, 30, 60 seconds every 4, 12, or 24 hours
Solenoid Valve: . . . . . . . . . . . . . . . . . . . . . . 6V DC, normally closed
Wattage: . . . . . . . . . . . . . . . . . . . . . . . . . 0.2W (idle), 3W (in use)
Operating Pressure: . . . . . . . . . . . . . . . 5 psi to 125 psi
Flow Control: . . . . . . . . . . . . . . . . . . . . . . . 1.0 GPM Laminar, vandal resistant

Available Models

This model is offered in the following options and list prices:

AC POWERED

H-2730-LR

Lead Free, AC Powered

$462.98

BATTERY POWERED

HE-2730-LR

Lead Free, Battery Powered with Enduratek

$453.82

Accessories and Parts

The following accessories are available for this model:

H27-003

Control Module (HE-2710 & 2730)

$120.49

H27-003E

Control Box Assembly (HE-2710 & 2730) *Specify AC or Battery*

$262.60

H27-004

Sensor Eyes and Cable (HE-2710 & 2730)

$64.35

H27-08

Solenoid Coil & Pressure relief Valve (2710 & 2730)

$90.67

H27-011

Solenoid Valve Assembly (HE-2710 & 2730)

$152.07

HB-003MJVR-1.0GPM

Laminar Flow Control – 1.0 GPM – Male, Junior Size, 2710 & 2730

$5.95

HBL-03-LR

Lead Free* Thermostatic, Anti-Scald Mixing Valve – 3/8″ In/Out with Checks

$95.93

MODEL SPEC

HC-001-LR

Lead Free* Mechanical Mixing/Check Valve – 3/8″ Compression

$51.67

HC-009B

In-Line Filter w/o Check (All except H/HB-3000, 4000, 3000C, 4000C)

$32.69

HC-025G

Flexible Supply Tube (H/HB/HE-27, 28, 3, 4, 41, 63, 78) Quick Connect

$15.55

HCB-005A

Control Disc (for HCB-005 and HCC-005 Solenoid Valves)

$16.83

HCC-103A

Battery Holder Only (for C-Series Faucets)

$7.59

HCE-019

Solenoid Coil, without Solenoid Module (5000E/EM, 7000E/EM/SLE/SLEM)

$75.88

HCC-008B

12V DC Plug-in Adapter (C-Series)

$43.30

HC-010

Multi-Unit Power Adapter (8 units total)

$89.25
