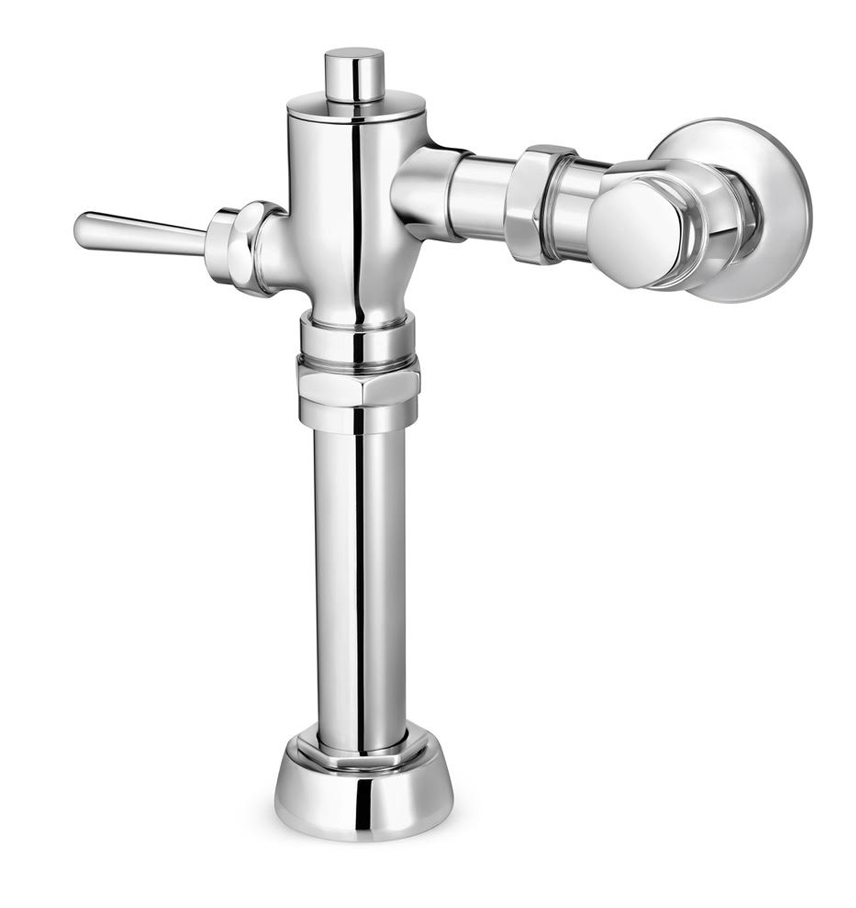

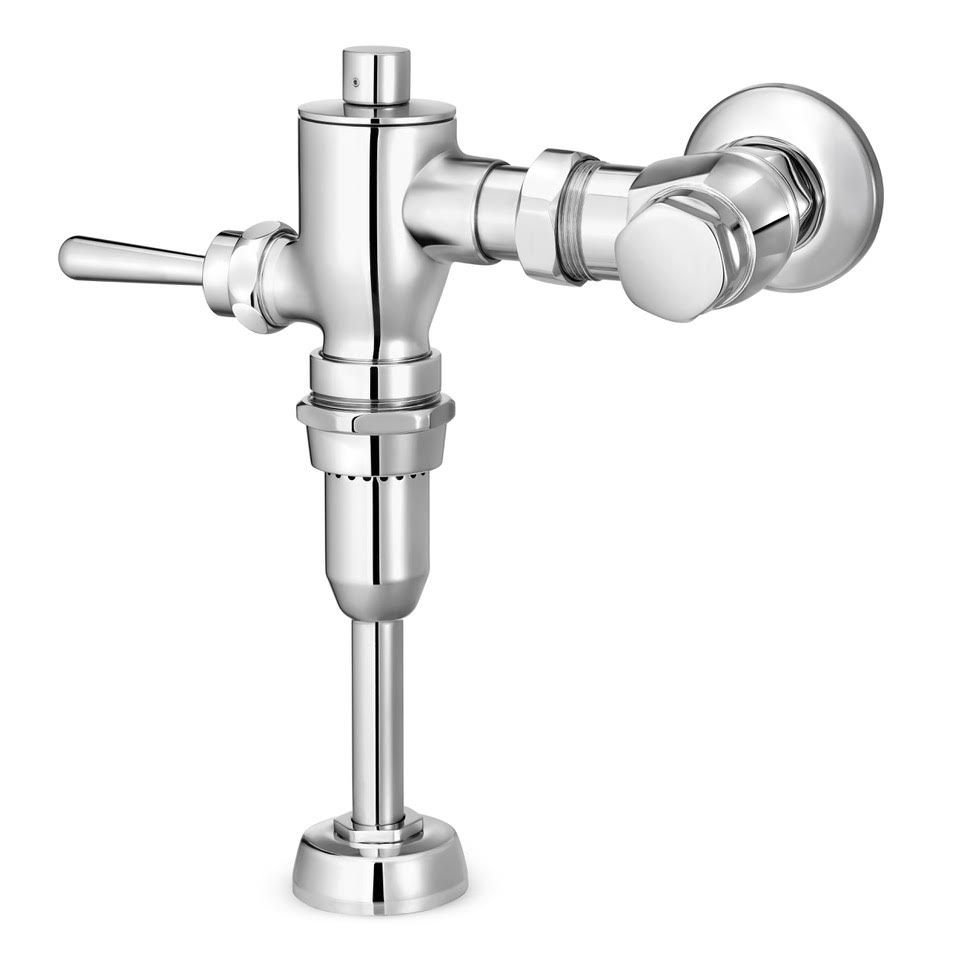

HM-8500 Urinal/Toilet Flush Valve

Product Details | Reliable. Versatile. Hydrotek.

Built to expand the Hydrotek flush valve offering, the HM-8500 Series delivers the dependable performance and quality you expect from Hydrotek in a traditional manual flush valve. Designed for commercial restroom applications, the HM-8500 offers flexible installation and configurations for both water closets and urinals. Whether specified for a new installation or retrofit project, it provides a reliable manual solution without compromising on performance or quality.

  • ADA Compliant
  • Closet and urinal models available
  • Durable piston-operated design
  • Self-cleaning filtering system
  • Left or right rough-in flexibility
  • Polished chrome finish
  • Select WaterSense Listed models

Downloadables

Literature

MODEL SPEC

Features

Exposed, Piston Operated, Chrome Plated, Closet Flush Valve with
the following features:

  • Left/Right rough-in
  • Rough-in dimension: 11-1/2” (292mm)
  • Piston valve mechanism
  • 1” I.P.S. Angle stop valve with vandal resistant cap
  • Sweat solder adapter with cover tube and wall flange
  • Spud coupling and flange for 1-1/2” top spud
  • Adjustable tailpiece
  • High back pressure vacuum breaker/flush tube connection
  • Superior VSI silicone elastomer piston seals are unaffected by chlorine, chloramines, and ammonia
  • High copper, low zinc brass casting for dezincification resistance
  • Operating pressures: 20-125 PSI
  • Standard self-cleaning filtering system

Available Models

This model is offered in the following options and list prices:

EXPOSED FLUSH VALVES

HM-8500-0.5

Manual Flush Valve, Urinal, 0.5 GPF, Watersense Listed

$228.05

MODEL SPEC

HM-8500-1.0

Manual Flush Valve, Urinal, 1.0 GPF

$228.05

MODEL SPEC

HM-8500-1.28

Manual Flush Valve, Closet, 1.28 GPF, Watersense Listed

$228.05

MODEL SPEC

HM-8500-1.6

Manual Flush Valve, Closet, 1.6 GPF

$228.05

MODEL SPEC
